JD46X cnc lathe machine turning and milling
|
Max. Swing dia. Over bed |
mm |
Φ500 |
|
Max. Swing dia. Over slide |
mm |
Φ200 |
|
Z axis max. travel |
mm |
550 |
|
X axis max. travel |
mm |
900 |
|
Rapid traverse |
m/min |
X:24 Z:24 Y：18 |
|
Spindle motor power |
kw |
5.5servo motor |
|
Φ150spindle unit |
rpm |
5000（Luoyang bearing Research Institute） |
|
Specifications for gear servo side milling head |
|
ER25、ER20（side3、end3，or side4、end4） |
|
Spindle parameter |
- |
noseA2-5、through holeΦ56、Synchronous belt drive |
|
Servo turret item |
- |
63-8T（8station） |
|
Tool holder |
mm |
20*20 |
|
Xaxis、Zaxis motor torque |
nm |
10NB 10N 6NB |
|
Xaxis、Zaxis motor connect type |
|
Directly connect |
|
Xaxis、Z axis lead screw type |
|
X:3210 Z:4010 Y：2506 |
|
Xaxis、Z axis ball rail line type |
|
X:30 Z:35 Y：25（roller） |
|
Repeated positioning accuracy |
mm |
0.003 |
|
Position precision（machine precision） |
mm |
0.01 |
|
spring collet type |
|
Φ65collet、M55push pipe |
|
Chuck type |
mm |
Φ200（8inch）\Φ160（6inch）(opition) |
|
Hydraulic rotary oil cylinder type（hollow） |
- |
646（Can through within Φ46bar） |
|
Cooling water pump power |
W |
250w |
|
weight |
kg |
≈3000 |
|
Overall dimension（L*W*H） |
mm |
≈2030*1850*2050 |
Supply Ability
Supply Ability
200 Set/Sets per Month
Packaging & delivery
Packaging Details:WOODEN CASE
Port:Ningbo

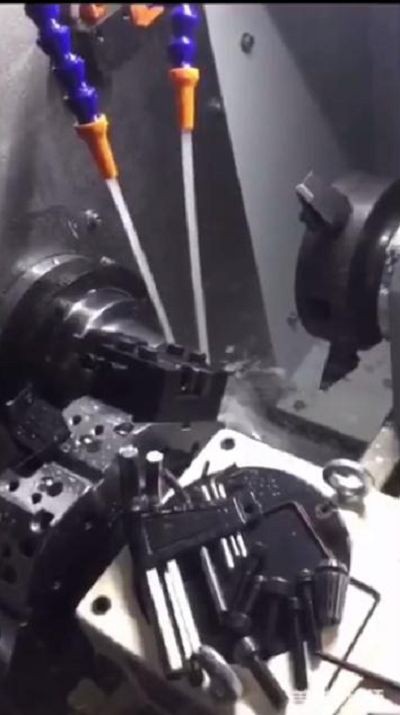

Picture Example:
Lead time:
Lead time (days):45days
Customer visit us:
FAQ
Q1. How about your price?
A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions.
Q2. Can you provide training for operation cnc lathe machine turning and milling machines?
A.Yes, free training in our factory is available.
Q3.Do you have CE certificate?
A. Yes,cnc lathe machine turning and milling we have CE certificate.
